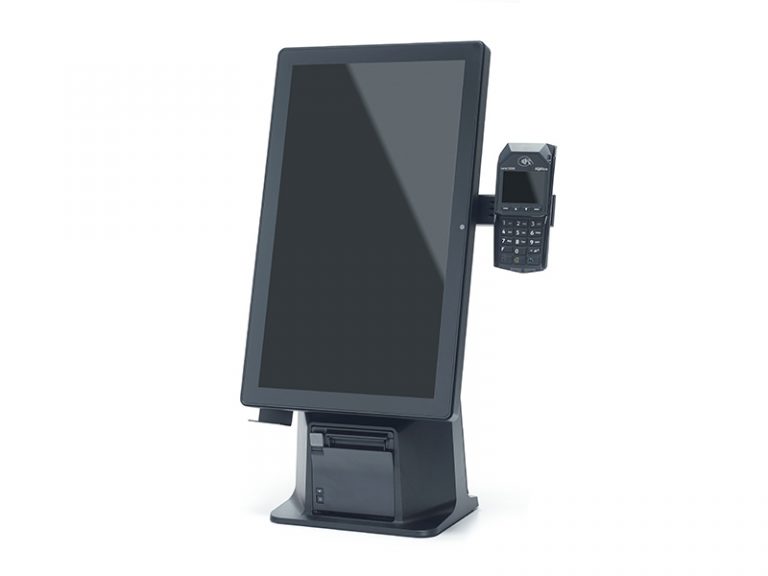

The Edge Kiosk is a self-service kiosk that can be configured for virtually any industry application. With its 21.5″ Projected Capacitive Touch Screen in Portrait Mode you will have plenty of room to easily integrate peripherals like MSR, pin pad mounts, scanners and webcams. This kiosk also has an integrated design with a built in Epson M30 Printer. This “one boxed” product is the next generation of kiosk design.
Features
Windows
The Edge Kiosk offers several Windows options:
OS Support: 10 IOT Enterprise IOT 2019 LTSC, 10 Professional, additionally expansion is available 1 Mini PCI-e Slot.
Processing & Storage: Processing options include Intel® i3-7100U 2.4GHz Kaby Lake and Intel® i5-6300U 3.0Ghz Skylake. The Windows OS comes with 1x DDR3-Lx1 up to 8 GB of memory and a 2.5″ SSD 128GB up to 2TB.
Ports: Standard ports include USB: 2x USB 2.0 4x USB 3.0, serial 4xRJ45 (with the power option), LAN 1x Gigabit Lan, VGA: D-SUB15 with power options, cash drawer x1 Direct IO Access, and optional ports are 2nd LAN: 1x Gigabit LAN.
Android
The Edge self-service kiosk POS system offers a select amount on Android options:
OS Support: Android 9 with no expansion available.
Processing & Storage: The processor is Qualcomm Snapdragon 450 up to 1.8Ghz and comes with 3GB of memory, additionally the storage capabilities is 32GB.
Ports: Standard ports include 2xUSB 2.0, 2x USB 3.0 Micro USB for OTG, and serial 2x DB9.
Dimensions & Touchscreen Interface
The Edge Kiosk has a few dimension options depending on the layout you choose. This allows for an ergonomic layout to fit your business’ needs.
For screen & podium your dimensions are: 12 7/8″ (W) x 26 3/4″ (H) x 8 1/4″ (D), while podium only you are looking as: 16″ (w) x 30 1/2″ (H) x 14″ (D) (Dimensions include bottom plate). Depending on the final configuration, the weight of the kiosk is approximately 30 lbs.
The LCD & touchscreen size are 21.5”, aspect ratio is 16:9, native resolution is1920x1080 pixels, and the brightness is 250 nits. The touch panel itself is a True Flat Projected Capacitive Touch.
Peripherals
To assist with all of your business needs, the Edge Kiosk offers several peripheral options so you can customize our kiosks to meet your application needs.
- Easily integrate the IDTECH or Magtek readers to accept payments through your kiosk.
- Scan IDs, tickets or receipts with an integrated Honeywell 2D scanner.
- See what’s happening from anywhere with a 2.0MP, Wifi & Bluetooth webcam attachment.
- Lastly, with an integrated printer, Epson TM-M30, which can interface in various ways including: USB, Serial, Ethernet, WIFI.
- Windows
-
Windows
The Edge Kiosk offers several Windows options:
OS Support: 10 IOT Enterprise IOT 2019 LTSC, 10 Professional, additionally expansion is available 1 Mini PCI-e Slot.
Processing & Storage: Processing options include Intel® i3-7100U 2.4GHz Kaby Lake and Intel® i5-6300U 3.0Ghz Skylake. The Windows OS comes with 1x DDR3-Lx1 up to 8 GB of memory and a 2.5″ SSD 128GB up to 2TB.
Ports: Standard ports include USB: 2x USB 2.0 4x USB 3.0, serial 4xRJ45 (with the power option), LAN 1x Gigabit Lan, VGA: D-SUB15 with power options, cash drawer x1 Direct IO Access, and optional ports are 2nd LAN: 1x Gigabit LAN.
- Android
-
Android
The Edge self-service kiosk POS system offers a select amount on Android options:
OS Support: Android 9 with no expansion available.
Processing & Storage: The processor is Qualcomm Snapdragon 450 up to 1.8Ghz and comes with 3GB of memory, additionally the storage capabilities is 32GB.
Ports: Standard ports include 2xUSB 2.0, 2x USB 3.0 Micro USB for OTG, and serial 2x DB9.
- Dimensions & Touchscreen Interface
-
Dimensions & Touchscreen Interface
The Edge Kiosk has a few dimension options depending on the layout you choose. This allows for an ergonomic layout to fit your business’ needs.
For screen & podium your dimensions are: 12 7/8″ (W) x 26 3/4″ (H) x 8 1/4″ (D), while podium only you are looking as: 16″ (w) x 30 1/2″ (H) x 14″ (D) (Dimensions include bottom plate). Depending on the final configuration, the weight of the kiosk is approximately 30 lbs.
The LCD & touchscreen size are 21.5”, aspect ratio is 16:9, native resolution is1920x1080 pixels, and the brightness is 250 nits. The touch panel itself is a True Flat Projected Capacitive Touch.
- Peripherals
-
Peripherals
To assist with all of your business needs, the Edge Kiosk offers several peripheral options so you can customize our kiosks to meet your application needs.
- Easily integrate the IDTECH or Magtek readers to accept payments through your kiosk.
- Scan IDs, tickets or receipts with an integrated Honeywell 2D scanner.
- See what’s happening from anywhere with a 2.0MP, Wifi & Bluetooth webcam attachment.
- Lastly, with an integrated printer, Epson TM-M30, which can interface in various ways including: USB, Serial, Ethernet, WIFI.
