From restaurants to healthcare facilities, ruggedized PCs are a must-have to stand up to high traffic and heavy usage.

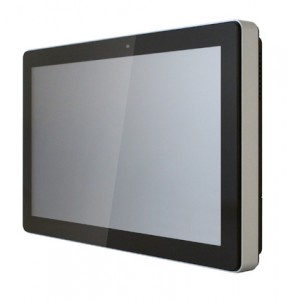

The QK PC Series is an advanced wide-screen panel PC designed with versatility and high-performance in mind. Its unique features make it a top choice for kiosk, digital signage, healthcare and other unique environments.
You can also choose from add-on options, such as MSR, RFID and handsets.
Download the spec sheet for more information.
KEY FEATURES
| Ultra slim Design, less than 2” deep | Ruggedized 3 piece metal housing, provides NEMA 4 & IP65 |
| Multiple LED display options: 15.6”, 18.5”, 21.5” | True flat resistive or Projected capacitive touch screen |
| Integrated webcam |
| CPU | Intel® Pineview Dual Core D525 1.8G | Intel® Sandy Bridge CPU, LGA 1155-pin, 32nmi7-2600S 2.8G, L2 8M, 65W / i5-2500S 2.7G, L2 6M, 65W / i5-2400S 2.5G,L2 6M, 65W / i3-2120 3.3G, L2 3M, 65WPentium G850 2.9G, L2 3M, 65WCeleron G540 2.5G, L2 2M, 65W / G530 2.4G, L2 2M, 65W | |||
| Chipset | Intel® Pineview CPU processor + ICH8M | Intel® Q67 PCH (Processor Controller Hub, AMT supported_highend) | |||
| System Memory | 2 x DDR3 SO-DIMM slot, up to 4GB | 1 x Long DIMM socket up to 8GB DDR3 1066/1333 Mhz, standard 1GB | |||
| Graphic Memory | Intel® GMA 3150 share system memory up to 256MB | Intel® HD Graphics 3000/2000, integrated in CPU, frequency 850MHz,(dynamic up to 1.1GHz) | |||
| LCD Touch Panel | |||||
| LCD Size | 15.6” LED LCD18.5” LED LCD | 18.5” LED LCD | 15.6” LED LCD | 18.5” LED LCD | 21.5” LED LCD |
| Brightness | 250 cd/m2 | 250 cd/m2 | |||
| Resolution | 1366×768 | 1366×768 | 1366×768 | 1920×1080 | |
| Touch Screen Type | True flate resistive touch / True flate projected capacitive touch | ||||
| Storage | |||||
| HDD | 2.5″ SATA HDD | ||||
| Expansion | 1 x mini PCI-E Slot | ||||
| External I/O | |||||
| USB 2.0 | 4 x USB 2.0 Type A | ||||
| Serial / COM | 4 (RJ45 type, COM1/COM2 standard COM, COM3/COM4 with+5V/+12V power selection) | 4 (RJ45 type, COM1/COM2 standard COM, COM3/COM4 with+5V/+12V by BIOS setting) | |||
| Parallel | 1 x D-sub 25F | ||||
| LAN (10 /100) | 1 x RJ-45 (10/100/1000Mbps Giga LAN) | ||||
| 2nd LAN Port | n/a | 1 x RJ-45 (10/100/1000Mbps Giga LAN) | |||
| Cash Drawer | 1 x RJ-11 (12V or 24V) | ||||
| DC Jack | 1 x Latch Type (4pin) | 1 x 2pin CN | |||
| Audio Jack | 1 x Mic-in, 1 x Line-out | 1 x Line-in, 1 x Line-out | |||
| PS2 | 1 x DB 15F | ||||
| Internal I/O | |||||
| USB 2.0 | 4 x USB 2.0 Type A | ||||
| Power | |||||
| Power Adapter | Adapter (DC 90W, 19V, 4.7A) | Adapter (DC 120W, 19V, 6.3A) | |||
| Audio: | |||||
| Speaker | 2 x 3W | ||||
| Environment | |||||
| EMC & Safety | FCC Class A / CE Marking / LVD | ||||
| Operating Temperature | 0°C – 40°C (32°F – 104°F) | ||||
| Storage Temperature | -20° ~ 60°C (-4°F ~ 140°F) | ||||
| Operating Humidity | 5% – 95% RH non-condensing | ||||
| Storage Humidity | 5% – 95% RH non-condensing | ||||
| Dust & Water Proof | IP 65 (front panel) | ||||
| Dimensions | 396 x 48.3 x 245.4 mm(15.6″ x 1.9″ x 9.7″) | 63.6 x 48.2 x 284.2 mm(18.3″ x 1.9″ x 11.2″) | 396 x 48.3 x 245.4 mm(15.6″ x 1.9″ x 9.7″) | 463.6 x 48.2 x 284.2 mm(18.3″ x 1.9″ x 11.2″) | 536 x 48 x 327 mm(21″ x 1.9″ x 12.9″) |
| Weight | 4.5kg (9.9lbs) | 6.8kg (15lbs) | 4.5kg (9.9lbs) | 6.8kg (15lbs) | 7.4kg (16.3lbs) |
| Mounting | 75mm x 75mm Standard VESA / Panel Mount | ||||
| OS | indows® XP Pro, Linux, POS Ready 2009, Windows® Vista, Windows® 7 POS Ready 7 | ||||
