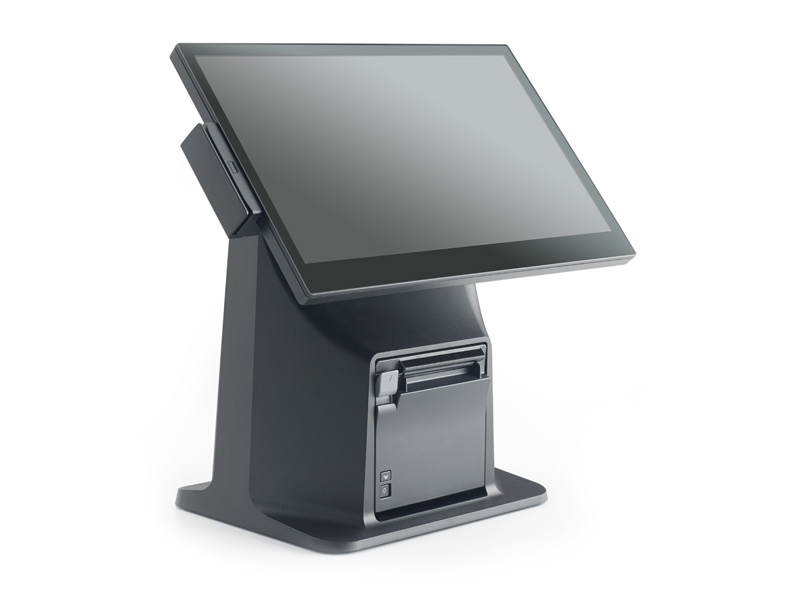

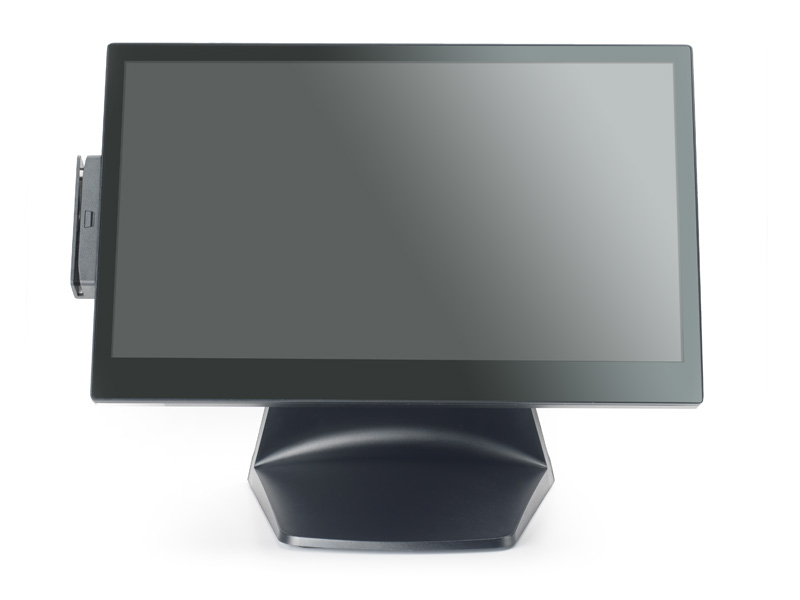

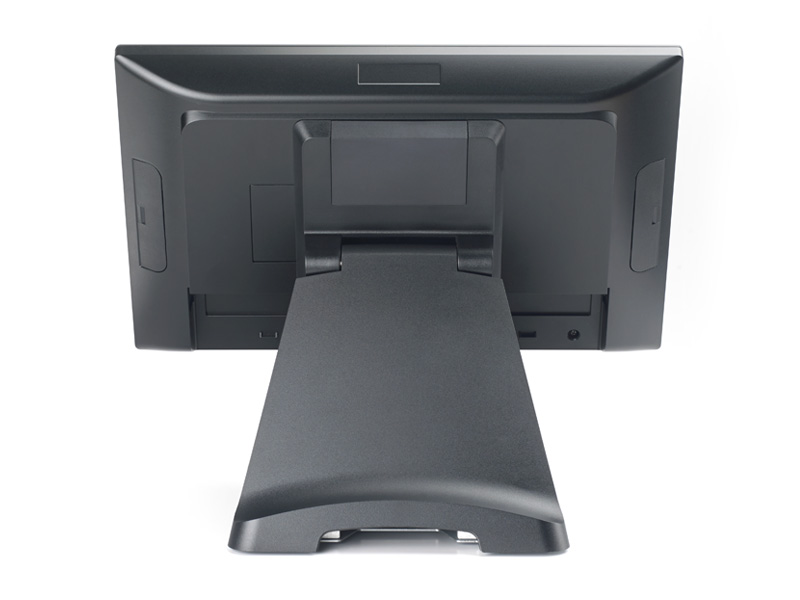

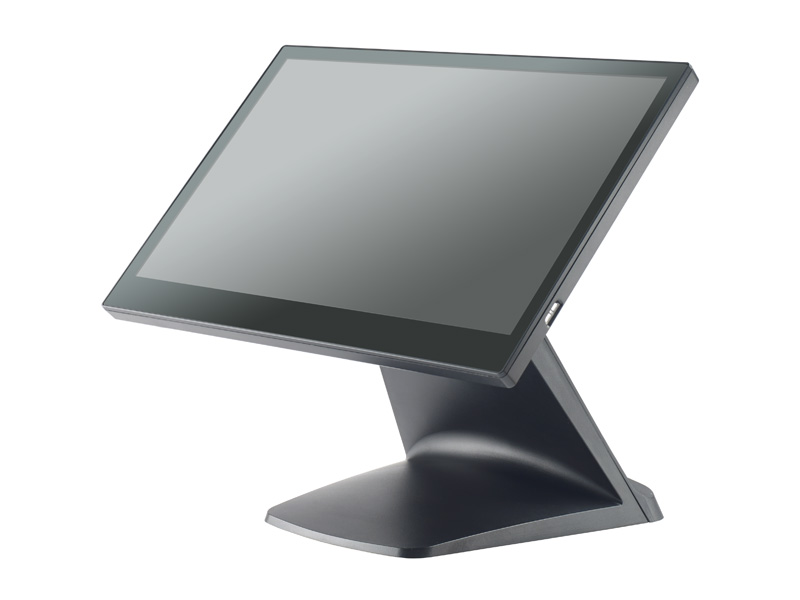

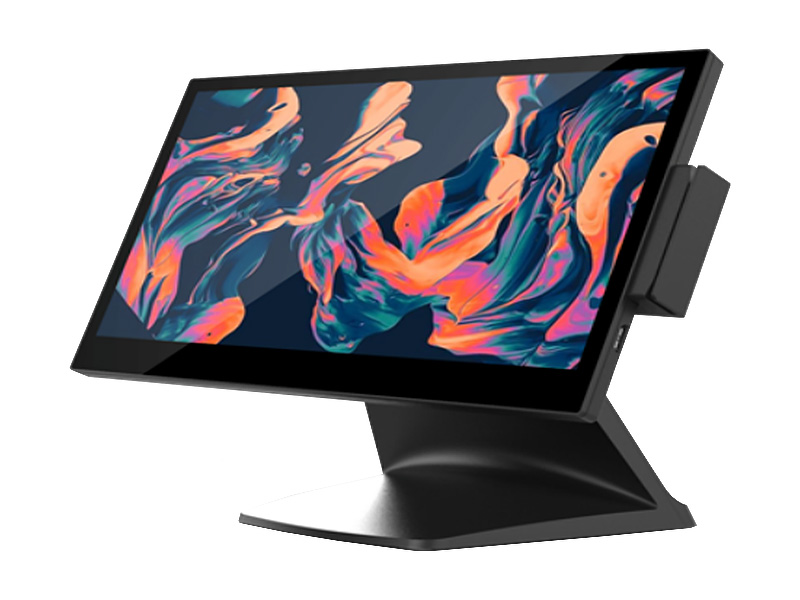

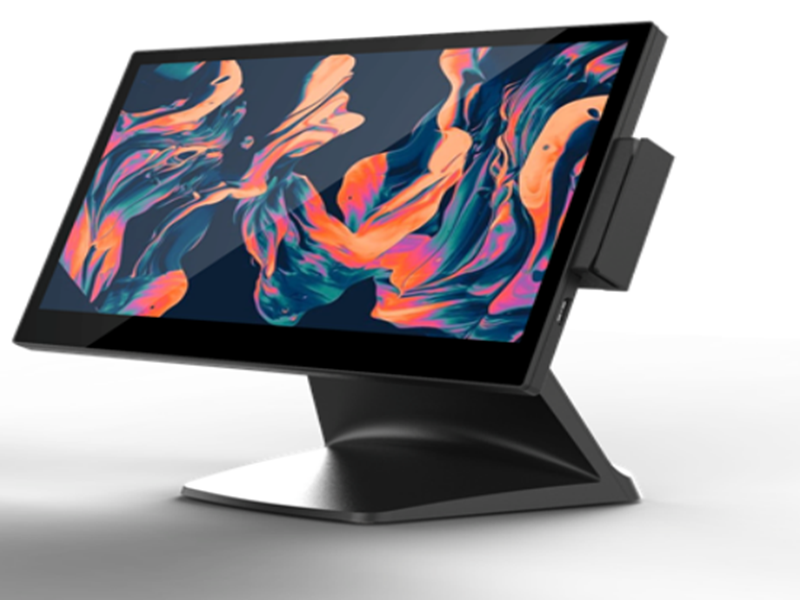

Pulse Ultra Widescreen

A Powerful All-In-One Solution

Meet the demands of your business and your customers with the fully customizable Pulse Ultra Widescreen All-In-One! Equipped with the 11th Generation Intel Elkhart and Tiger Lake CPU options, the Pulse Ultra Widescreen promises high-power, lightning-fast performance, and the new CPU allows for compatibility and an upgrade path to Windows 11. True flat PCAP multi-touch screens keep employees efficient and customers engaged with a crystal clear display and resolution of Full HD. Choose memory options from 8GB all the way up to 32GB, and plug in with a versatile selection of ports including USB, USB-C, LAN, custom miniDP for HDMI and VGA displays and others. Customizable peripherals bring it all together with optional customer rear display, magnetic stripe reader, mounted barcode scanner, fingerprint reader, and more. Explore how the Pulse Ultra Widescreen All-In-One can be customized for your business needs today.

The Pulse Ultra Widescreen Offers Some of the Best Solutions in the Market

Slim and Sleek Design

  • 11th Generation Intel Elkhart and Tiger Lake CPU options
  • Up to 32GB of high-speed DDR4 memory
  • Available in 15.6” Display

Custom Configuration

    • Optional 11.6” or 15.6” rear display
industry icons

Processor

Intel® Celeron® J6412
Intel® CoreTM i3-1115G4
Intel® CoreTM i5-11135G7

Memory

8GB, up to 32GB

Storage

1x 128GB drive (M.2 NVMe)
(larger drives available)

Graphic Engine

Intel® UHD Graphics for 10th Gen Intel® Processors (J6412)
Intel® UHD Graphics for 11th Gen Intel® Processors (i3-1115G4)
Intel® Iris® Xe Graphics (i5-1135G7)

Supported OS

Windows 10 IoT Enterprise, Windows 11 GAC/PRO, Linux, Android 13

I/O Ports

2x USB 3.0, 2x USB 2.0
2x USB-C (J6412 2x data only, i3/i5 1x Video & Power Delivery, 1x data only)
1x custom miniDP convertible to HDMI or VGA
2x DB9 Serial with Power Option
1x RJ45 Gigabit LAN
1x Audio Out 3.5mm jack (optional)
1x RJ-11 Cash Drawer Port
1x 4-pin PSU Connector (with latch)

Power

65w / 19V (J6412)
120w / 19V (i3-1115G4, i5-11135G7)

Display

15.6″ Widescreen (1920×1080)

Touch Screen

True-Flat PCAP multi-touch

Peripheral (options)

3-Track MSR (USB)
HID global fingerprint reader (USB)
LCM 2×20 customer display (USB)
11.6” and 15.6” 2nd display with touch
2D Honeywell barcode scanner
Supports most common pin pads available from
Ingenico, PAX, Verifone, IDTECH and others

Dimensions

14.52″ (W), 11.5″ (H), 8.28″ (D)

Collateral

  • Download Pulse Ultra All-In-One spec sheet here

Product Manual

  • Download Pulse Ultra All-In-One Product Manual here

Additional Resources

Available Product Images
